Home > Products > smooth cover hydraulic hose > COMPACT WIRE BRAIDED HYDRALIC HOSE (EN857)

COMPACT WIRE BRAIDED HYDRALIC HOSE (EN857)

  • COMPACT WIRE BRAIDED HYDRALIC HOSE (EN857)
  • COMPACT WIRE BRAIDED HYDRALIC HOSE (EN857)

COMPACT WIRE BRAIDED HYDRALIC HOSE (EN857)

    Unit Price: 0.2 USD
    Min. Order: 500 meter
    Port: Qingdao Port

Basic Info

Model No.: EN857/910-62

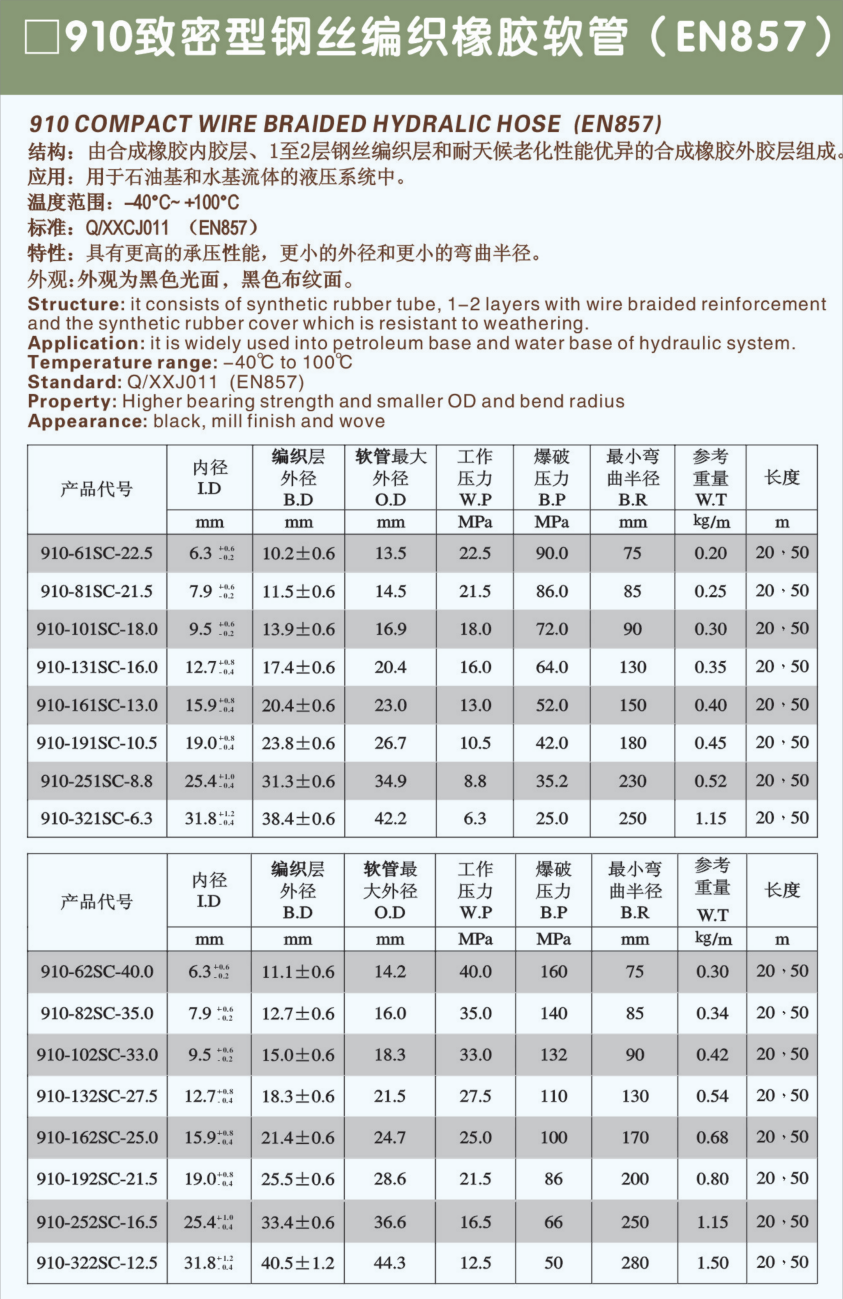

Product Description

En 857 High Pressure Single Stainless Steel Wire Braided Reinforced Hydraulic Hose


STRUCTURE
Continuous Service Temperature Range: -40°F / +212°F; -40°C / +100°C
Max Operating Temperature: 250°F 121°C
Insert: SHF-TYPE
Tube: Oil resistant synthetic rubber
Reinforcement: One high tensile steel braid
Cover: Environment resistant synthetic rubber

Applicable Specs: EN 857 1SC and ISO 11237-1 1SC

KEY PERFORMANCE

EN/DIN and new SAE rated working pressures
High flexibility and excellent bend radius, Low weight, Range extension to DN 76
Appearance: Wrap( I.D less than 25.4mm smooth cover)
Branding: Printing and indelible branding with embossed technology

Colour: Black

Hydraulics: Low-medium pressure lines with installation constraints, pilot lines, return lines (suction lines DN ≤ 31)

Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water.

Structure: Reinforced Thermoplastic Pipe consists of synthetic rubber tube, 1-2 layers with wire braided reinforcement and the synthetic rubber cover which is resistant to weathering.

Application: Rubber Hose Pipe is widely used into petroleum base and water base of hydraulic system.

Temperature range: -40"0 to 100P

Standard: Q/XXJ011 (EN857)

Property: Higher bearing strength and smaller OD and bend radius

Appearance: Oil Hose is black, mill finish and wove



Single Stainless Steel Wire Braided Reinforced Gasoline Hydraulic Hose

The company has dozens of production equipment and testing instruments imported from abroad, with advanced production technology and testing means, and its technical center has become a provincial scientific research and technology center. The company passed ISO9001:2000 and GJB9001A-2001 quality system certification in March 2003, and was awarded as a first-class quality inspection organization by China Petroleum and Chemical Industry Association.
The company was awarded as "Advanced Enterprise" and "Advanced Enterprise of Serving National Defense Science and Technology Industry" by Shaanxi Provincial Government, and won the National Science and Technology Progress Award issued by the State Council.


Stainless Steel Wire Braid Reinforced HoseEN857SC/EN853SN Series

Q: ARE YOU MANUFACTURER OR TRADING COMPANY?
A: Founded in 1997 we are one of leading manufacturer in China with more than 100 employees.
Q: Where is your location? A: Our location is in Xianyang City Shannxi Province.It is 30 minutes to Hangzhou Airport,2.5 hours to xi‘an and 2 hours to Ningbo Port by car. We would like to pick you up from any of the station and airport in these cities.
Q: How's your core competence?
A:There are 4 experience engineers in our R&D department and 10 employees for quality control department. Most of our equipment is advanced production line.
Q: What certificates does your company have?
A: Quality certificate lSO 9001:2015. Environmental certificates lSO 14001
Q: WHERE IS YOUR MAIN MARKET? A: Beside Chinese market our products mostly export to North Europe,WestEurope,Central Europe,North America and South America.
Q: lf you accept OEM production and how you make it?
A:Yes. We need a sample or drawings from you. Before sample production we will provide all the technical specification and discuss testing requirement to reach the top quality. The sample delivery time normally takes 20 days.
Q:How long is your delivery time?
A:15-30 days.



Shaanxi Yanchang Petroleum Northwest Rubber Flexible Pipe Co., Ltd.

  • 1
  • 2
  • 3
  • 4
  • 5


Shaanxi Yanchang Petroleum northwest Rubber Co., Ltd. is composed of the former Kaidi northwest Rubber Co., Ltd. and Shaanxi Yanchang Petroleum Group Rubber company, Yanchang rubber (Thailand) Co., Ltd., a state-owned independent legal person company established through integration and reorganization, is subordinate to Shaanxi Yanchang Petroleum (Group) Co., Ltd. and was incorporated in December 2012 with a registered capital of 2.962 billion yuan. It is the only large-scale enterprise in China integrating natural rubber planting and processing, sales and R & D of radial tire, rubber plastic and other polymer materials.

The company is located in Xianyang high tech Zone with convenient transportation, covering an area of 470000 square meters, total assets of 2.962 billion yuan, a total of more than 2000 employees, more than 760 key personnel in key types of work,production,equipment and R & D, including 285 professional and technical personnel. It has 7 professional production branches, 2 business divisions, 1 Technical Center, 1 product quality inspection center and 6 professional product research laboratories, and has participated in the preparation and revision of nearly 10 military and industrial standards.

The flexible composite pipe business department of Shaanxi Yanchang Petroleum northwest Rubber Co.,Ltd. was established in March 2015. In the early stage, it completed the market research of non-metallic flexible composite high pressure transmission pipe, the verification and development of process technology, pilot production and manufacturing, the handling of various certificates and production licenses, and the preparationof various process documents and systems; Officially put into operation in June 2017, the flexible composite pipe business unit is a high-tech department dedicated to the R & D / production / sales / after-sales service of

flexible composite high-pressure transmission pipes. The business unit has 155 employees, including 8 technicians. The business unit has advanced manufacturing technology and production process, and more than 20 sets of raw materials, semi-finished products and product testing equipment, At the same time, relying on the company's testing center, it can carry out thousands of chemical analyses and more than 200 physical experiments; It has 15 utility model patents for flexible composite high-pressure transmission pipe products;Two invention patents; Obtained API Q1 quality system certificate and API 15s product certificate from American

Petroleum Association in January 2021; Safety mark certificate of mining products; "Flexible composite high pressure transmission pipe and polymer material application project" won the honor of Shaanxi Yanchang Petroleum (Group) Co., Ltd. won the second prize for scientific and technological progress in 2020; the division is engaged in the development and research of 2-3 new products every year; in terms of production, it has eight domestic advanced production lines, mainly including water injection pipe, oil transmission pipe, gas transmission pipe, alcohol injection pipe, downhole composite pipe, fiber-reinforced polyethylene pipe for coal mine, etc. the annual production of various flexible composite pipes reaches 3000 km, with sales of 1.8-2.6 RMB100mn
